HDV 500 Horizontal Floor Standing Digital Comparator

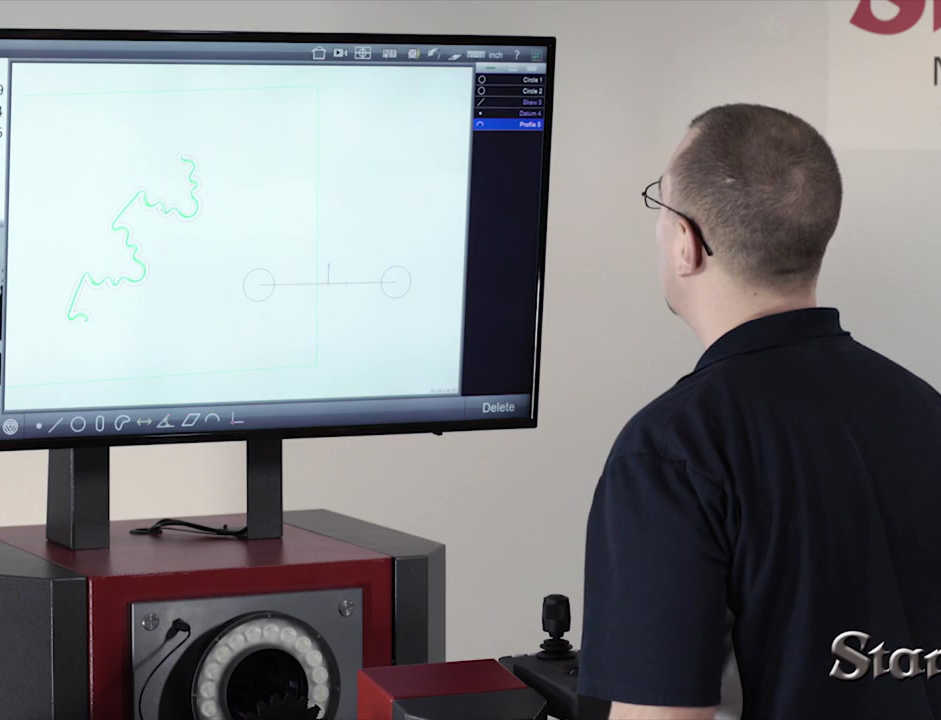

The  HDV500 CNC Digital Video Comparator offers the best features of a large, floor standing, horizontal optical comparator and a vision metrology system. The HDV500 has a long 20" x 8" (500mm x 200mm) X-Y stage and heavy-duty steel construction. The workstage is the same as the popular HF600 and HF750. The heart of the HDV system centers on a uniquely designed interchangeable lens mounting system (patent pending) to a hi-resolution 5 mega-pixel digital video camera. The HDV500 is available with a choice of three telecentric lens options for micron-level resolution and for accurate Field-of-View (FOV) measurements. With MetLogix™ M3 Metrology software, DXF CAD files can be imported and 2D Go-No-Go digital overlays can be developed directly from the CAD files. Video edge detection (VED) allows real-time interaction of the imported file with the video image of the part being inspected. Productivity speed and accuracy are all enhanced.


HDV 500 Horizontal Floor Standing Digital Comparator

    • Steel construction with nickel plated stage tooling plate
    • 21.3" x 5.1" (540 x 130mm) workstage top plate
    • CNC controls
    • 330lb (150kg) maximum load capacity
    • 3" (75mm) of focus travel
    • Helix angle adjustment with ±15° Vernier scale
    • X-Y  and focus positioning via joystick and trackball positioning
    • Heidenhain  glass scales for 20μin (0.5μm) X and Y resolution
    • LED illumination for surface and profile lighting
    • 5  mega-pixel black and white digital video camera (2448 x 2058 pixels)
    • Floor standing model
